- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1955 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 183053
- Number of Tubes
- 1
- Valves / Tubes
- EZ80
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Multimeter - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 440 x 215 x 180 mm / 17.3 x 8.5 x 7.1 inch
- Notes

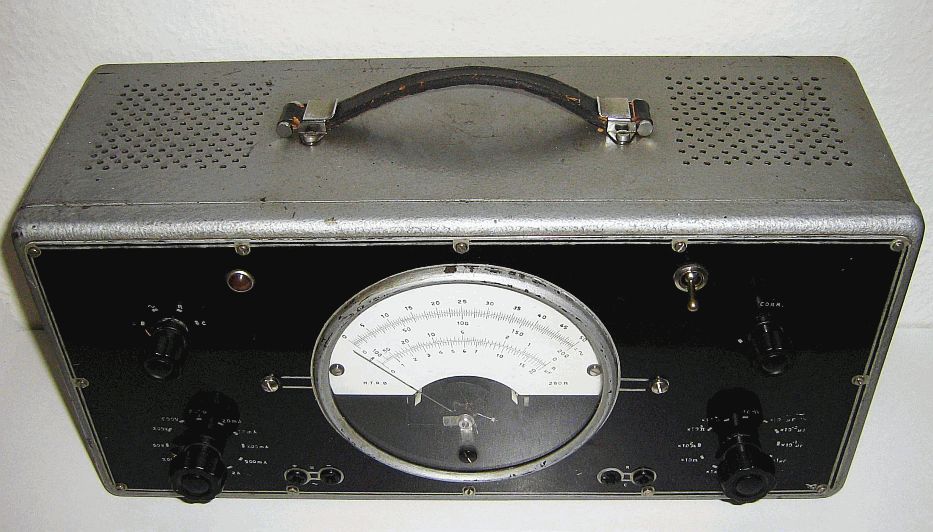

- This heavy and big multimeter has a 15 cm. meter-scale, but there is not any trace of a model name to be found on nor in the instrument. My guess is that it is a Philips product; the knobs are of the Dutch queezing type. This model has the following features: AC and DC voltage 5V/20V/50V/200V/500V/2000V; AC and DC current 20mA/50mA/200mA/500mA/2A. AC is measured via a transformer and something like a bridge of 4x OA70 germanium diodes.Leads to be connected at the left side below. To measure resistance and capacitance this model needs the mains voltage to be switched on. A 8045 light bulb indicates that mains voltage is on. Features are:resistance ohm x1/x10/x100/x1k/x10k/x100k; capacitance nanofarad x1/x10/x100/x1k/x10k.Leads to be connected at the right side below. There is something like a bridge of 4 x OA200 germanium diodes in connection to the meter instrument, which is covered by a metal shield
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Jan Terranea. See "Data change" for further contributors.
- Other Models
-
Here you find 5245 models, 4387 with images and 3446 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Collections
The model Multimeter is part of the collections of the following members.
Forum contributions about this model: Philips; Eindhoven: Multimeter
Threads: 1 | Posts: 3
Hoping that someone will recognize my mystery 11,5 kg multimeter, I attach a photograph.
It looks like Philips.........
Thanks in advance for your help to solve the mystery.
Jan Terranea.
