• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1980 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 130143

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• BC549 BC548 BC548 BC548 TDA1059 TCA760

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 127; 220-240 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

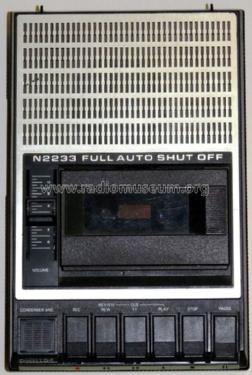

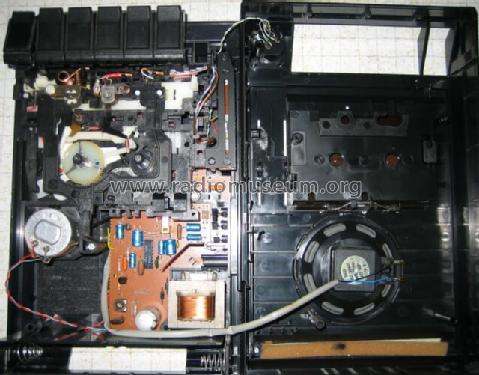

• Model: N2233 /00 /15 /50 /55 - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 170 x 65 x 270 mm / 6.7 x 2.6 x 10.6 inch

• Notes
• 2 Ausführungen: ../00 und ../15 Eingebautes Electretmikrofon, Anschluß für ext. Mikrofon/Remote.
  Eingänge: Radio/ Phono/ Line über Klinkenbuchse 3,5 mm, Halbspur mono Tonkopf. 2 ICs: TCA760B (NF-Endstufe), TDA1059C (Motorregelung).

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Price in first year of sale
• 99.00 DM

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Klemens Rhode. See "Data change" for further contributors.
