• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1966/1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 332681

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• UY85 UCL82

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110-127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: NG2432 /00 - Philips France; Paris

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 365 x 130 x 245 mm / 14.4 x 5.1 x 9.6 inch

• Notes

• Tourne-disque 3 vitesses, élements de AG2032.

  Têtes de lecture : AG3306, AG3310
  HP dans le couvercle : type AD2461RX, Z = 4 Ω

  Mallette gainée deux tons, exécutions :

  • /00C = pécari et gris
  • /00F = vert et gris
  • /00X = bleu et gris (ne figure pas dans le manuel)

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Mentioned in

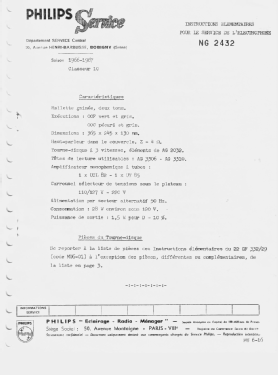

• -- Original-techn. papers. (Saison 1966-1967)

• Author
• Model page created by Francisco Martins. See "Data change" for further contributors.
