Philetta 54K BD233U-K

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7075

• • Brand: Deutsche Philips-Ges.

• Picture

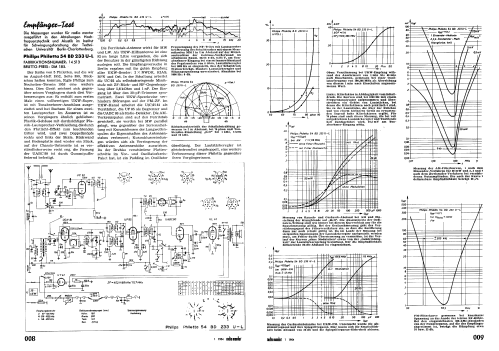

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UC92 UCH81 UF85 UABC80 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 452 or 468/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Philetta 54K BD233U-K - Philips Radios - Deutschland

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 280 x 180 x 140 mm / 11 x 7.1 x 5.5 inch

• Notes

• Kurzwellen-Version. Ausführung in braun oder elfenbein-weiss lackiert.
  Siehe auch Philips Philetta 54L mit Langwelle.

  Preis für die Schweiz 250 SFr.

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Price in first year of sale
• 189.00 DM

• External source of data
• Ernst Erb, HB9RXQ

• Source of data
• Kat.d.Rundf.GrossH.1953/54

• Mentioned in
• Rundfunk- und Fernseh-Katalog 1953/54

• Literature/Schematics (1)
• -- Original-techn. papers.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
