• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1966 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 126485

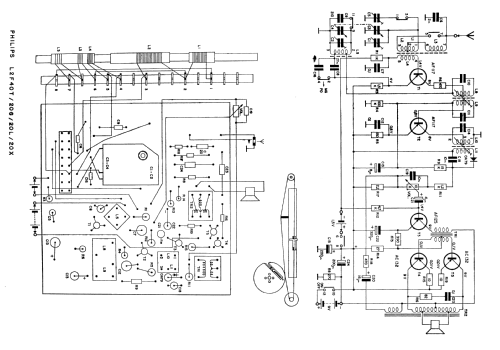

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• AF117 AF117 AC125 AC132 AC132 OA79

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 x 4.5 + 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Philetta L2F40T /20G /20L /20X - Philips France; Paris

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 233 x 142 x 68 mm / 9.2 x 5.6 x 2.7 inch

• Notes

• Ferritantenne 175 mm rund 10 mm mit 6 sternförmigen Rillen. Spannungsversorgung 2× 4,5 V 3R12 und 1× 1,5 V LR6.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Price in first year of sale
• 1,595.00 BFr

• Author
• Model page created by Alfred Przybilla. See "Data change" for further contributors.
