• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1977

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 131491

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 12VBJP4

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 220; 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.7 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

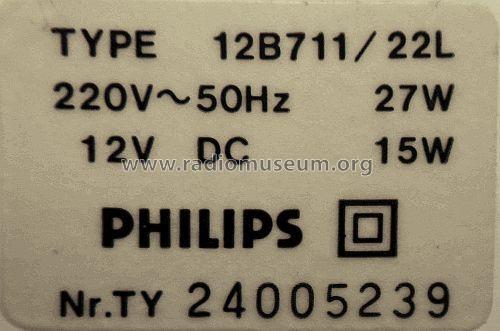

• Model: Philetta TX711 12B711 /22L /22S Ch= TX - Philips - Österreich

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 390 x 295 x 300 mm / 15.4 x 11.6 x 11.8 inch

• Notes

• Das Modell Philetta TX 711 ist ein Kofferfernsehgerät. Ein Programmspeicher mit 6 Programmplätzen ermöglicht den Empfang der voreingestellten VHF- oder UHF- Sender.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
