750A-14

• Country
• Czechoslovakia

• Manufacturer / Brand
• Philips akc. spol., Praha-Hloubetin

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23183

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AK2 AF3 ABC1 ABL1 AM1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 750A-14 - Philips akc. spol., Praha-

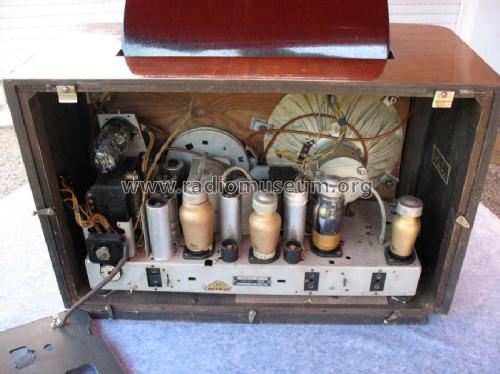

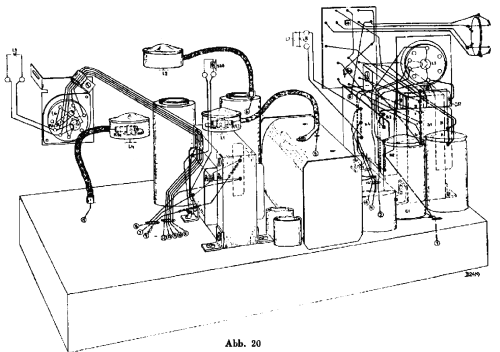

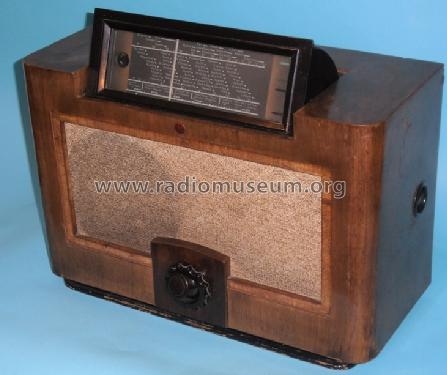

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 355 x 275 mm / 21.3 x 14 x 10.8 inch

• Notes

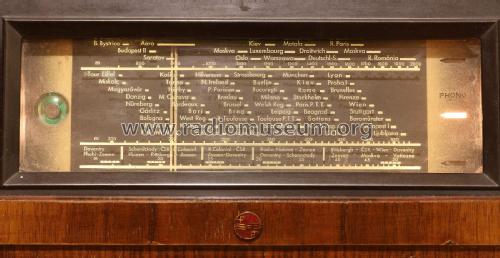

• 3 Wellenbereiche:
  KW 16.5 - 51 m,
  MW 195 - 585 m,
  LW 720 - 2000 m.

  Ausführung -14 mit Lautsprecher Typ 9602. Skalenlampen: 2 x 8042-37, 1 x 8042-07.

  Siehe auch Philips 750U-14 mit eingebautem Zerhacker für Allstrom-Betrieb.

• Net weight (2.2 lb = 1 kg)
• 14.9 kg / 32 lb 13.1 oz (32.819 lb)

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947

• Mentioned in
• -- Original-techn. papers.
