Planoton B4A33A /00 /70
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 92689

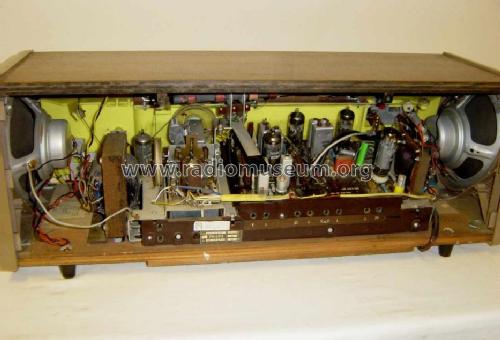

Bild aus eigener Sammlung
Vergleich zwischen dunkel und hell

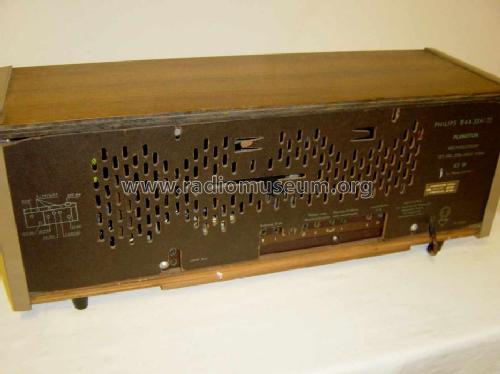

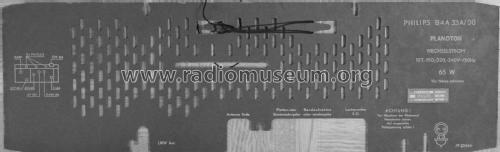

Rückwand - guter Zustand
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 127; 150; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Planoton B4A33A /00 /70 - Philips - Österreich
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 600 x 235 x 245 mm / 23.6 x 9.3 x 9.6 inch
- Notes
-
2 Ausführungen:
/00 = Seitenteile dunkel, Holz hochglanz
/70 = Seitenteile hell, Holz matt.Parallelgerät zum Hornyphon Rex W463A /00 /70
Vorgänger:
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
