• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1975

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 166245

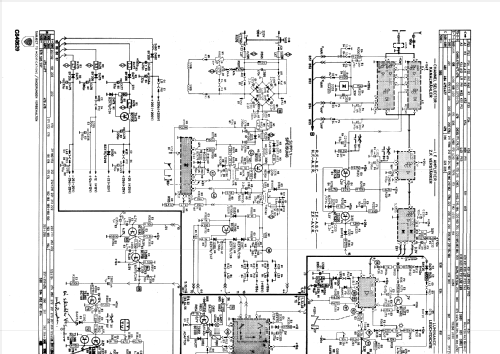

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 470DYB22

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Raffael 435 Mobilcolor 18C435 Ch = KT1 - Philips - Österreich

• Shape
• Tablemodel, low profile (big size).

• Notes
• Empfangsbereich VHF und UHF
  Fernsehnorm CCIR-PAL
  Volltransistorisiert, Modulaufbau mit 10 steckbaren Modulen
  18"/46cm /110° Bildröhre.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
