• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1975

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 113016

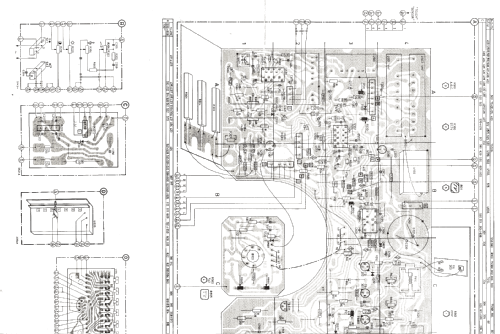

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A44-520W

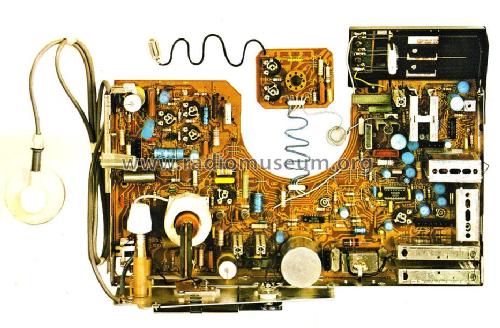

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Raffael 44 Professional 17B521 /00 /00W Ch= E1 - Philips - Österreich

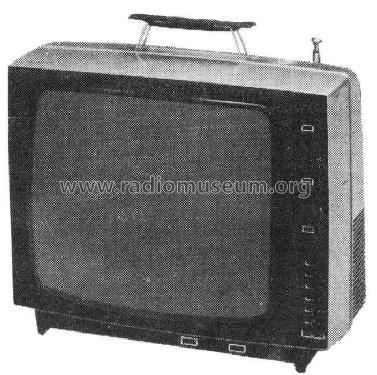

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 475 x 370 x 305 mm / 18.7 x 14.6 x 12 inch

• Notes

• Empfangsbereiche VHF und UHF
  2 Ausführungen: /00= silber und /00W= weiß.

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
