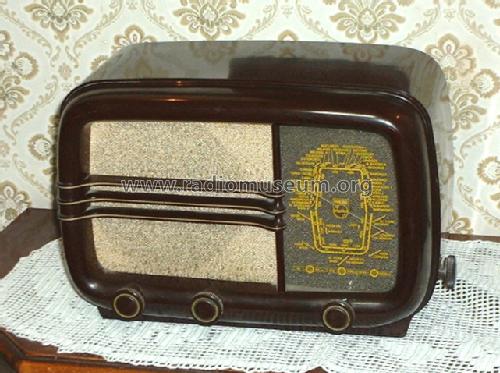

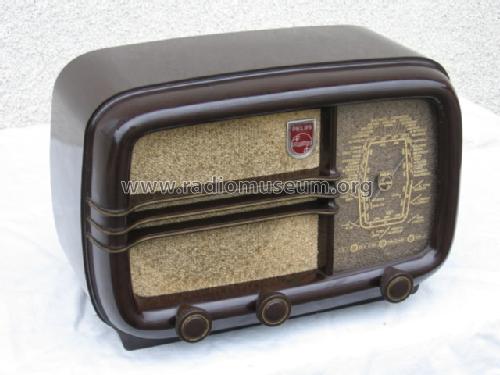

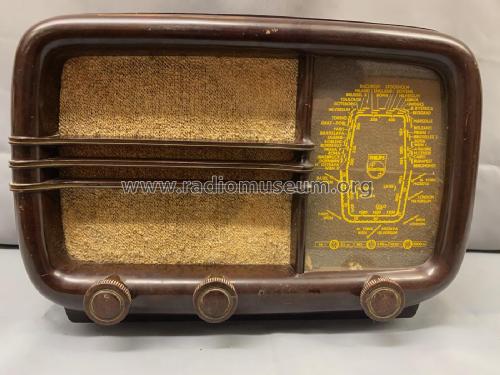

Rhapsodie BA393A

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 10107

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 200: 220: 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 3.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Rhapsodie BA393A - Philips - Österreich

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 365 x 250 x 205 mm / 14.4 x 9.8 x 8.1 inch

• Notes
• Wellenbereiche: KW 16...52 m; MW 185...590 m; LW 1030...2000 m. Anschluß für Plattenspieler. Parallelgerät zum Horny W350A.

• Net weight (2.2 lb = 1 kg)
• 5.4 kg / 11 lb 14.3 oz (11.894 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
