Rhapsodie B3A73A

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72978

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM81 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 127; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rhapsodie B3A73A - Philips - Österreich

• Shape

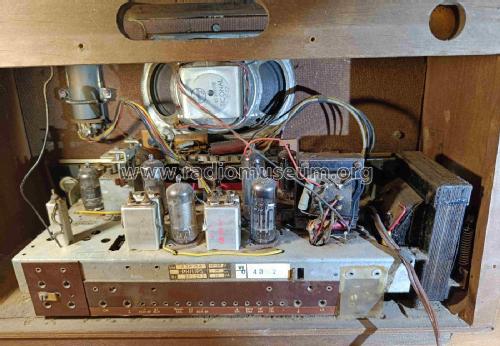

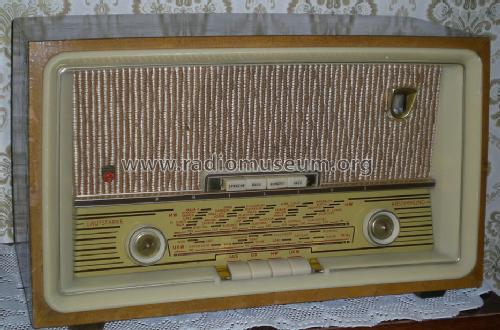

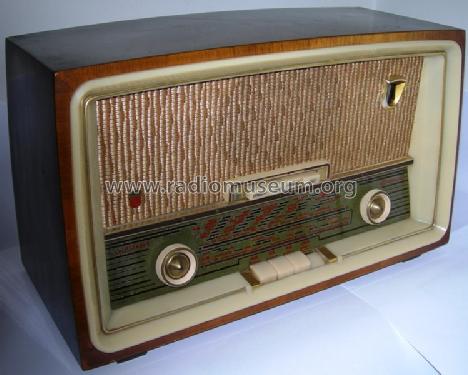

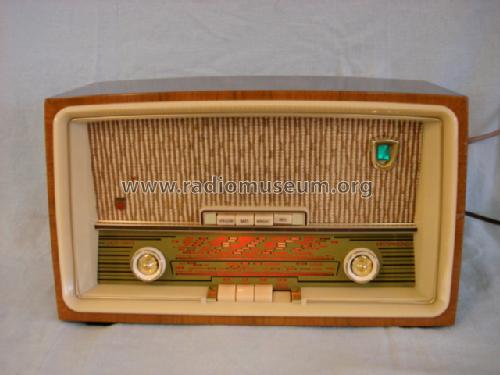

• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 430 x 250 x 200 mm / 16.9 x 9.8 x 7.9 inch

• Notes
• Parallelgerät zum Horny W367A.

• Price in first year of sale
• 1,650.00 öS

• Source of data
• -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Martin Fichtinger. See "Data change" for further contributors.
