• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1959/1960

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 96628

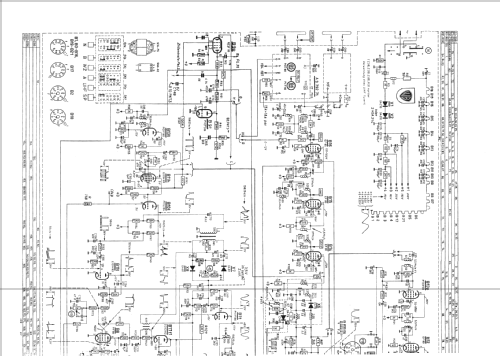

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• PCC88 PCF80 EF85 EF80 EF80 PCL84 PCF80 EF80 PCL82 PL84 PCC85 PCF80 ECH83 ECC82 PF86 PCL82 PCF80 PL36 PY81 DY87 AW43-88

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Royal 17TA250A /00 Ch= S5 - Philips - Österreich

• Shape
• Tablemodel, with any shape - general.

• Notes

• Empfangsbereich VHF-Band I + III, UHF vorbereitet.
  Parallelgerät zum Hornyphon Rembrandt WT1715A/00.
  Für Kabel-Fernbedienung AT6320/02.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
