• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1969/1970

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 127499

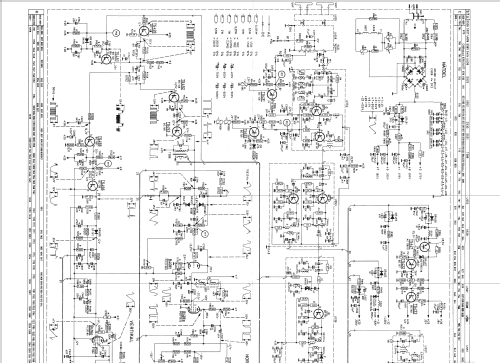

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• PCL86 PL802 PCF80 PCF802 PL504 PL509 PY500 GY501 PD500 PL508 PCF200 PCF200 PCF200 A56-120X

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

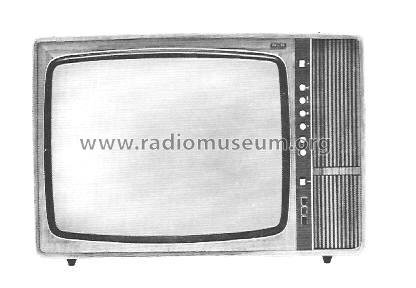

• Model: Royal Color 22 S22K493 /62 /63 /73 Ch= K7 - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 460 x 500 mm / 23.6 x 18.1 x 19.7 inch

• Notes

• 3 Ausführungen:
  ../62 = Teak
  ../63 = Teak
  ../73 = Palisander.
   Empfangsbereich VHF + UHF.

  Tuner: UV1

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
