• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1969

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 128180

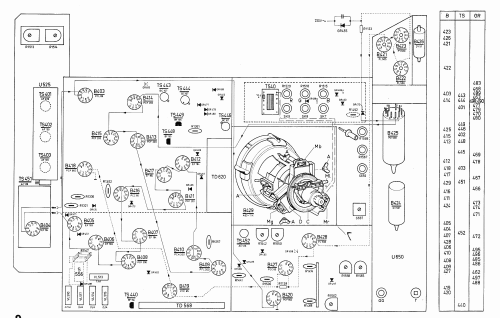

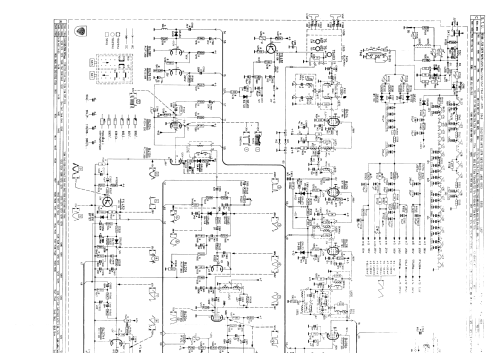

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 27

• Valves / Tubes
• EF184 EF183 EF183 PCF200 PFL200 PCL86 EF184 PCF201 EF184 PCF802 EF184 PCC85 PCF200 PCF200 PCF200 PCH200 PCC85 PL508 PCC85 PCF802 PL505 PL500 PY500 DY51 GY501 PD500 A63-11X

• Number of Transistors
• 12

• Semiconductors
• AF139 AF239 AF139 AC128 BF115 BF115 AC125 BF195 BF195 BC107 BC107 BC107

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

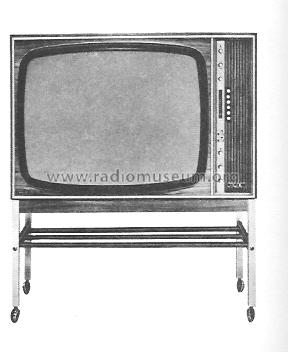

• Model: S25K481 /50 Ch= K6 - Philips - Österreich

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 720 x 510 x 540 mm / 28.3 x 20.1 x 21.3 inch

• Notes

• Empfangsbereich: VHF + UHF.
  Ausführung /50 = Teak

  Verschiedene Chassisausführungen:
  Von A02 bis A08,
  von A09 bis A19,
  von A20 bis A45
  und ab A46, siehe Datenblätter.

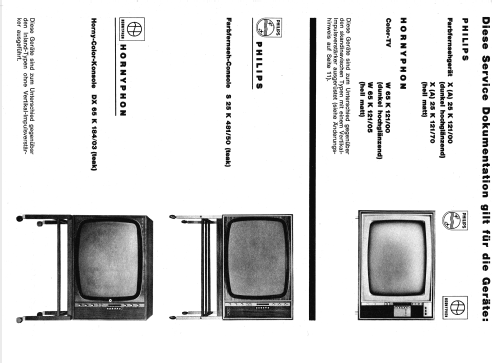

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
