• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 201169

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EBC41 EL41 EM34 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 3.7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

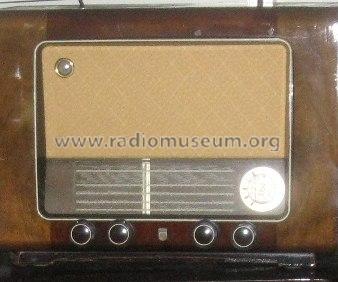

• Model: SA620 - Philips - Österreich

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 410 x 230 mm / 21.7 x 16.1 x 9.1 inch

• Notes
• Paralleltype zum Philips BX620A.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)
