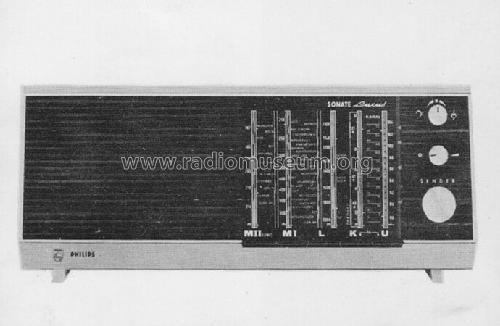

Sonate 12RB280/30E
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1967/1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 73882
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; 5 AF stage(s)
- Tuned circuits
- 5 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
- Power out
- 2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Sonate 12RB280/30E - Philips - Österreich
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 430 x 175 x 105 mm / 16.9 x 6.9 x 4.1 inch
- Notes
- MW Bereiche (210 - 580m und 185 - 214m).
2 Ausführungen:
Sonate /30E= Weiß/Palisander
Sonate Luxus /30B= mittelbraun matt (siehe auch unter 12RB280/30B).
- Net weight (2.2 lb = 1 kg)
- 2.3 kg / 5 lb 1.1 oz (5.066 lb)
- Source of data
- -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
