Sonate 898A
Philips France; Paris
- Country
- France
- Manufacturer / Brand
- Philips France; Paris
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 76471
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 128 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 26 cm = 10.2 inch
- Power out
- 8.8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Sonate 898A - Philips France; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 640 x 460 x 340 mm / 25.2 x 18.1 x 13.4 inch
- Notes
-
- Syntonisation automatique (pas de moteur !). Un frein arrête le mouvement en cours en cas de syntonisation précise.
- Syntonisation silencieuse.
- Bande passante variable.
- Antifading retardé.
- Circuit feedback pour augmenter la qualité de son.
Équivalent au Radiola RA78A.
- Automatic tuning (no motor !). A brake stops the tuning movement when tuned precisely.
- Silent tuning.
- Variable passband.
- Delayed anti-fading.
- Feedback circuit to improve the sound quality.
- Net weight (2.2 lb = 1 kg)
- 20.3 kg / 44 lb 11.4 oz (44.714 lb)
- Price in first year of sale
- 3,800.00 FRF
- Source of data
- Les Radio PHILIPS de collection
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)

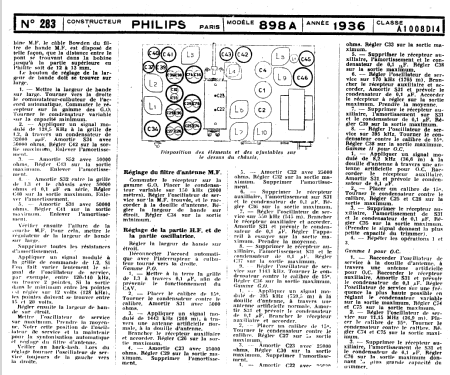

- Schémathèque Toute la Radio (STR) (No. 283)
- Literature/Schematics (2)
- -- Original-techn. papers.
- Author
- Model page created by Patrice Zeissloff. See "Data change" for further contributors.
