• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1984 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194379

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 168/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 or 240 / 6 × 1,5 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

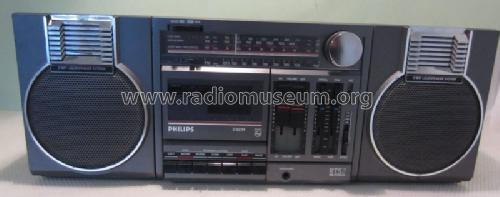

• Model: Sound-Machine D8234 /00 /05 - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 565 x 205 x 1 mm / 22.2 x 8.1 x 0 inch

• Notes

• Rundfunkteil mit automatischer UKW-Scharfabstimmung (AFC), Recorder mit elektronisch geregeltem Laufwerk, abnehmbare Boxen.

  2 Ausführungen:
  ♦.../00 = 220 Volt
  ♦.../05 = 240 Volt.

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Günter Döring. See "Data change" for further contributors.
