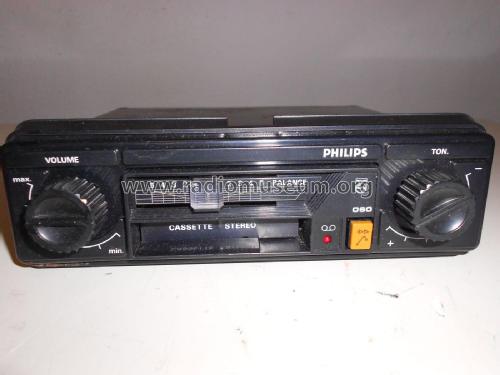

Stereo Cassette 060 22AC060 /50E

Philips - Österreich

Data
Forum
Pictures
Collections

  • Year
  • 1976 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 303219

 Technical Specifications

  • Number of Transistors
  • 2
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 10 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette 060 22AC060 /50E - Philips - Österreich
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 43 x 135 mm / 7.1 x 1.7 x 5.3 inch
  • Notes

  • controllo volume/bilanciamento/tono - led accensione - tasto play/ff.ww./eject - negativo a massa - impedenza altoparlanti: 4/8 Ω - potenza uscita: 5 + 5  watt max.

  • Net weight (2.2 lb = 1 kg)
  • 1.450 kg / 3 lb 3.1 oz (3.194 lb)
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
