• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1979 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 192493

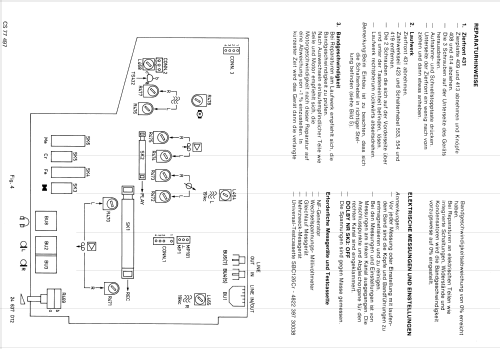

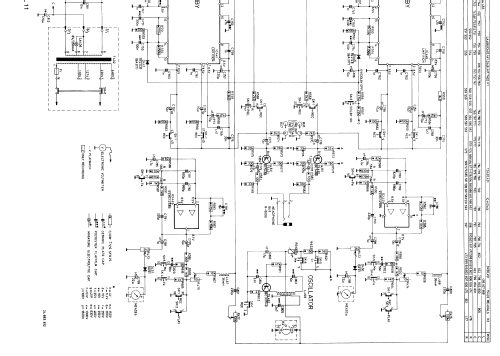

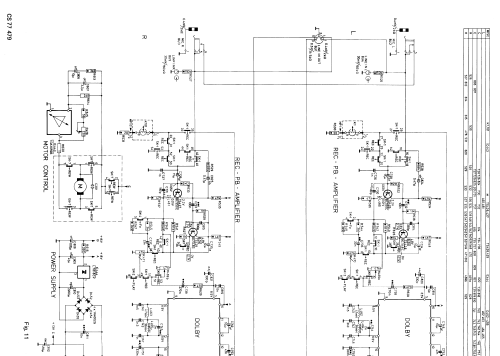

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

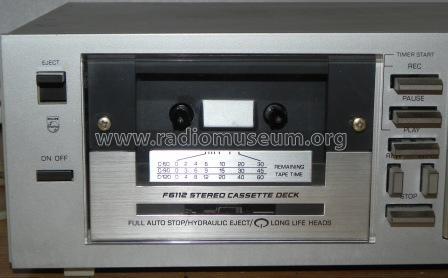

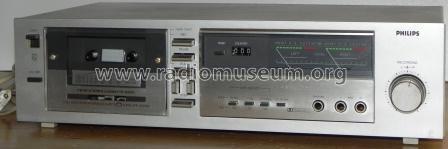

• Model: Stereo Cassette Deck F-6112 /00 /05 /40 - Philips - Österreich

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 115 x 250 mm / 16.5 x 4.5 x 9.8 inch

• Source of data
• - - Data from my own collection

• Author
• Model page created by Leo Brtna. See "Data change" for further contributors.
