• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1973–1976

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 29188

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cassetten-Recorder 2405 N2405 - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 340 x 60 x 210 mm / 13.4 x 2.4 x 8.3 inch

• Notes

• Stereo-NF-Verstärker mit 2 Endstufen je 2,5 W; zwei Lautsprecherboxen 22RH401 gehören zum Lieferumfang. Übertragungsbereich: 60-10000 Hz.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Handbuch VDRG 1974/1975 (und 1975/76)

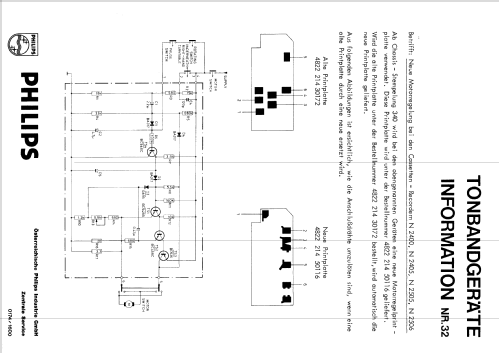

• Literature/Schematics (1)
• -- Original-techn. papers.
