Stereo-Radio-Recorder Tandem D8478 /00 /02 /05
Philips - Österreich
- Country
- Austria
- Manufacturer / Brand
- Philips - Österreich
- Year
- 1988/1989
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293100
eBay-162001185343-tigufahrer
Philips Katalog 1988/89

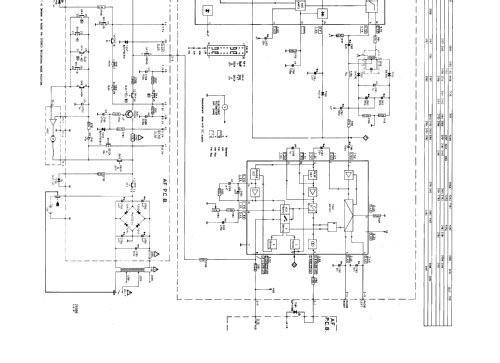

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 120; 220; 240 / 8 × 1,5 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 32 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Stereo-Radio-Recorder Tandem D8478 /00 /02 /05 - Philips - Österreich
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 600 x 220 x 120 mm / 23.6 x 8.7 x 4.7 inch
- Notes
-
Philips Stereo-Radio-Recorder D8478 Tandem;
UKW-Stereo mit LED-Anzeige, 5-Band-Graphic-Equalizer, Doppel-Cassettendeck, High-Speed Dubbing, CD-Eingang, abnehmbare Lautsprecherboxen mit 2-Wege-System.
Tape deck mechanism: RX-4
- Mentioned in
- Philips - Radio TV and Home Entertainment Catalogs (Philips Katalog 1988/89)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
