• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73869

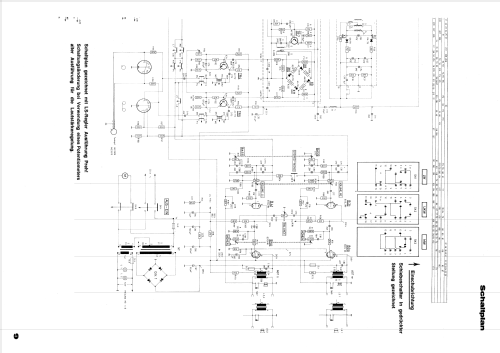

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF183 ECL86 ECL86 EM87 EM87

• Number of Transistors
• 7

• Semiconductors
• AF102 AF121 AF125 AF126 AF126 AC172 AC172

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereoplan Steuergerät 03RS563 [/00 /09 /70] - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 520 x 230 x 195 mm / 20.5 x 9.1 x 7.7 inch

• Notes

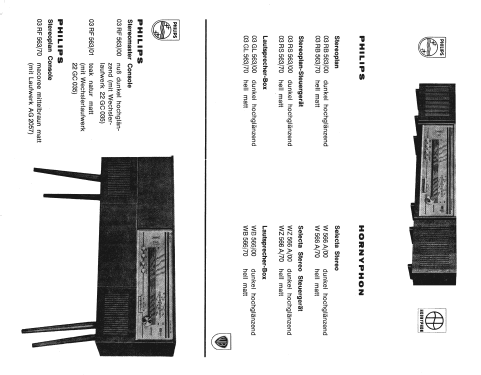

• 3 Ausführungen:
  /00 = dunkel hochglänzend
  /09 = palisander
  /70 = hell matt
  Eingebauter Stereodecoder
  2 Magische Bänder für Feldstärke- und Stereoanzeige
  Lautsprecherboxen Philips 03GL563, Preis der Lautsprecherbox à 490.- ATS.
  Parallelgerät zum Horny WZ566A.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Price in first year of sale
• 2,995.00 öS

• Source of data
• Radiokatalog Band 2, Ernst Erb
