• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73373

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EC92 EC92 ECH81 EF85 EM34 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 458,5/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110, 130, 150, 220, 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

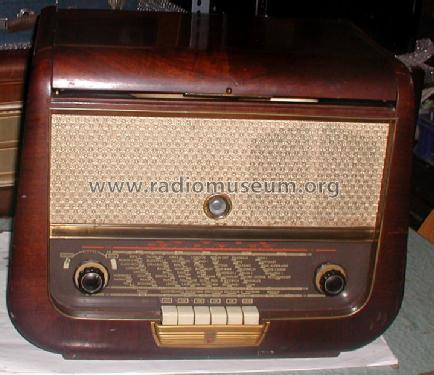

• Model: UKW-Konzertmeister HA733A - Philips - Österreich

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 530 x 420 x 315 mm / 20.9 x 16.5 x 12.4 inch

• Notes
• Plattenspieler Philips AG2001 oder Philips AG2002.
  Kurzwellenlupe

• Net weight (2.2 lb = 1 kg)
• 14.7 kg / 32 lb 6.1 oz (32.379 lb)

• Price in first year of sale
• 3,490.00 öS

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
