• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72071

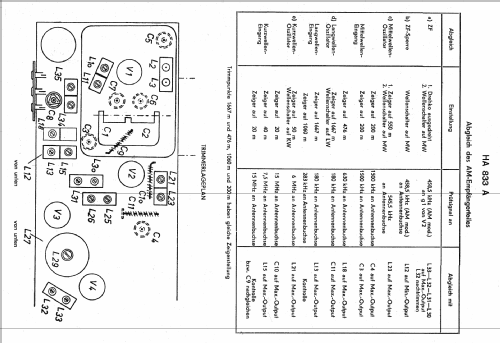

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• EC92 ECH81 EF85 EABC80 EM34 EL84 EF40 ECC83 EL42 EM34 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 458,5/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

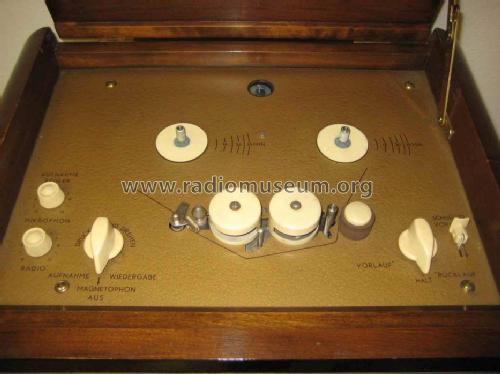

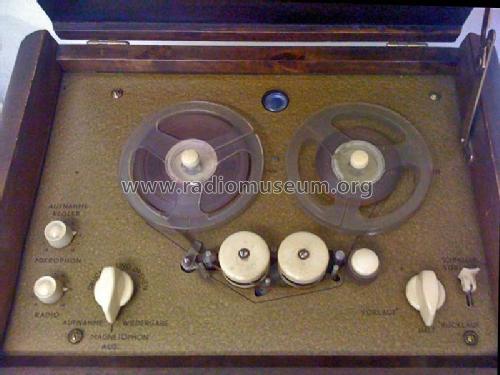

• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: UKW-Radio-Magnetophon HA833A - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 510 x 410 x 360 mm / 20.1 x 16.1 x 14.2 inch

• Source of data
• -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Bernhard Sacherer. See "Data change" for further contributors.
