Winner L3S32T Ch= T9A

Philips, Svenska AB, Stockholm

Data
Forum
Pictures
Collections

  • Year
  • 1963 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 345897

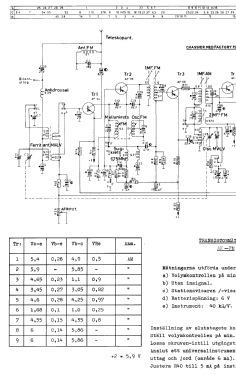

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 460/6750 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / 4 x 1.5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.3 W (max.)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Winner L3S32T Ch= T9A - Philips, Svenska AB, Stockholm
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 264 x 148 x 71 mm / 10.4 x 5.8 x 2.8 inch
  • Notes

  • There is some changes in relation to the T9A chassis. See documentation.

    Chassis T9A is used in Dux models T930 and T940 as well as in models Philips B3S21T and Conserton B1925T.

    Sockets for battery eliminator BT1, ear phone and external antenna.

    Case: Soft plastic in beige, black or red.

  • Net weight (2.2 lb = 1 kg)
  • 1.5 kg / 3 lb 4.9 oz (3.304 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Lars Nord. See "Data change" for further contributors.
