• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1952–1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 175014

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 4699 EM4 AZ2

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 120; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

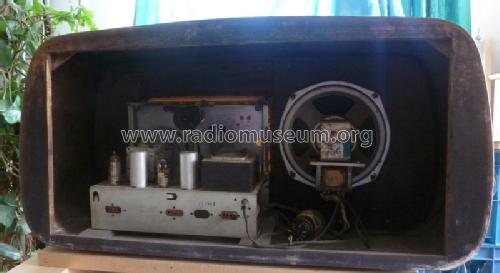

• Model: 5529 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, low profile (big size).

• Notes

• One Medie e 4 gamme di onde Corte allargate.
  Antenna fittizia realizzata con il collegamento della rete elettrica di alimentazione alla presa di antenna dell'apparecchio tramite un condensatore di isolamento. Inserendo l’antenna esterna il collegamento viene disattivato.
  Ingresso fono. Regolatore di tono.

• Source of data
• Guida Pratica Antique Radio V (2003)

• Mentioned in
• -- Schematic (Il Radio Libro D.E. Ravalico 13a edizione Hoepli editore 1952.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
