• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127384

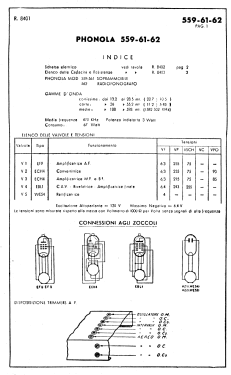

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF9 ECH4 ECH4 EBL1 WE12 WE54

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 100-270 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 561 [E-tubes] - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 510 x 320 x 240 mm / 20.1 x 12.6 x 9.4 inch

• Notes

• Tre gamme d'onda: medie (188-598 mt.), corte (26-55,2 mt.) e cortissime (13,2-28,5 mt.). Assorbimento: 67 Watt. A differenza degli altri modelli serie 561, utilizza valvole serie E-.

  Antenna fittizia realizzata con il collegamento della rete elettrica di alimentazione alla presa di antenna dell'apparecchio tramite un condensatore di isolamento. Inserendo l’antenna esterna il collegamento viene disattivato.

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Literature/Schematics (1)
• -- Original-techn. papers. (D.E. Ravalico: Servizio Radiotecnico vol. II. Radioriparazioni. 8^ Edizione. Hoepli, Milano, 1952.)

• Author
• Model page created by Marco Gilardetti. See "Data change" for further contributors.
