Lampe Radio Lux 152
Piga; Bois-Colombes
- Country
- France
- Manufacturer / Brand
- Piga; Bois-Colombes
- Year
- 1948–1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 108761

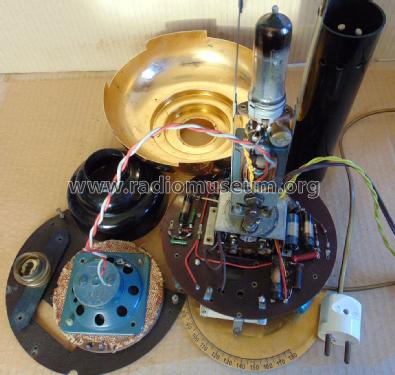

From the collection of TSF-Radio, France.
From the collection of TSF-Radio, France.
From the collection of TSF-Radio, France.
Pub in Toute La Radio No 170 Nov. 1952
Pub in Toute La Radio No 150 Nov. 1950
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Radio with other functions
- Power type and voltage
- AC/DC-set / 110; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Lampe Radio Lux 152 - Piga; Bois-Colombes
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 0 x 540 x 0 mm / 0 x 21.3 x 0 inch
- Notes
-
Radio in form of a table lamp.
Angaben ohne Schirm: Höhe 395 mm, Durchmesser Fuss unten 200, Säule 50, oben 110 mm, Gewicht 1,8 kg. Lampe Bajonett-Fassung (B22). Unterschiedliche Farbgebungen und Lampenschirme, wahrscheinlich auch Lautsprecherformen. Anschlüsse für das Lampenschirmgestänge als Antenne und Erde.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Mentioned in
- Toute la radio (No. 150, Nov. 1950 + No 170, 1952)
- Literature/Schematics (1)
- Le Guide du Collectionneur TSF Biraud/Foster, Vol. I (page 143)
- Literature/Schematics (2)
- La TSF pour TOUS - TSF et TV (Revue mensuelle) (No 236, Juin 1948 / Récepteurs Foire 1948)
- Author
- Model page created by John Koster. See "Data change" for further contributors.
