• Country
• France

• Manufacturer / Brand
• Pygmy, Ciate-Pygmy (SCIP, CIATE); Paris, La Plaine St. Denis, La Courneuve

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71065

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK92 or 1AC6 1T4 1S5 3Q4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Dry Batteries / 2 x 1.5 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

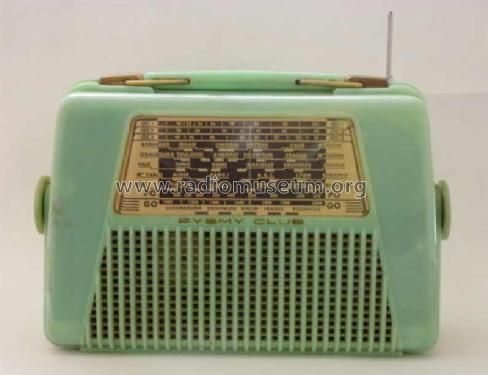

• Model: Club [sans clavier, 3 OC] - Pygmy, Ciate-Pygmy SCIP, CIATE

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 245 x 180 x 75 mm / 9.6 x 7.1 x 3 inch

• Notes

• 5 gammes d'ondes PO, GO et 3 x OC de 20 à 54 m. Antenne télescopique. Sélection de gamme par bouton rotatif à l'arrière.

  Coffret en ivoire, vert, bordeaux ou marron.

  Fonctionne sur secteur avec l'alimentation type AC.

• Price in first year of sale
• 17,500.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• - - Manufacturers Literature (Tarif 1954)

• Literature/Schematics (1)
• Le grand livre de la TSF (Doctsf Ref 13906)

• Literature/Schematics (2)
• Radio Constructeur et Dépanneur (1954)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
