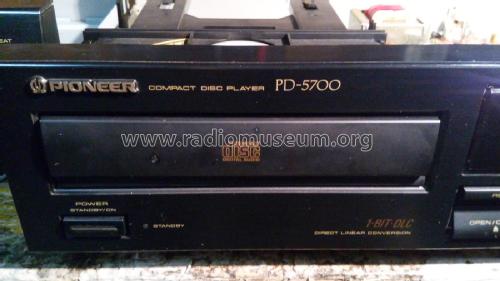

Compact Disc Player PD-5700

A hi-fi stereo compact disc player with infrared remote control (CU-PD0046). 1 bit DLC Direct Linear Conversion. RCA phono Line Output sockets, CD-Deck Synchro terminal, jack for Headphone with volume control and on U.S. and Canadian models only Control input/output terminals.

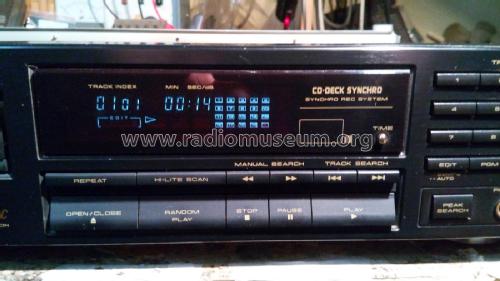

Functions
Basic operation:
  Play, Pause, Stop
Search functions:
  Direct selection, Track search, Manual search, Peak search, Hi-Lite scan
Repeat functions:
  Single track repeat, All tracks repeat, Programmed repeat, Random play repeat,
   Programmed random play repeat
Programming:
  Programmed playback (up to 24 tracks), Pause program, Program check, Program
   correction, Program clear, Auto program edit, Program hold, Compu program edit
Random play:
  Random play, Programmed random play
Level hold
Timer start
CD-deck synchro
Digital level control (Remote control)

Versions/Power requirements
U.K. and Australian models AC 230-240V 50/60Hz
European model                 AC 220-230V 50/60Hz
U.S. and Canadian models  AC 120V 60Hz
Multi-voltage model             AC 110/120-127/220/240V 50/60Hz with voltage selector

Power consumption: 12 W

The above dimensions are of the U.S., Canada, U.K. and Europe models, dimensions of other models are 420(W) x 96(H) x 276(D) mm.

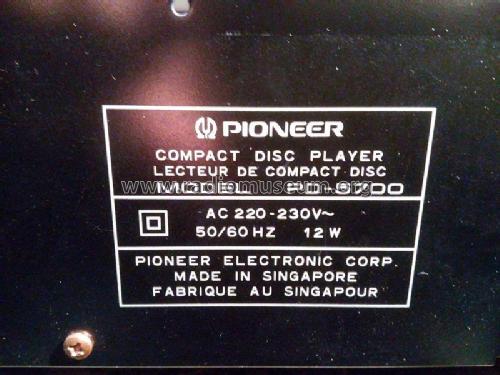

There is also a silver cased version, the Pioneer PD-5700-S Compact Disc Player with a PD-5700 front label and PD-5700-S on the rear label.

Made in Singapore
