Stereo Amplifier SA-708

Pioneer Corporation; Tokyo

Données
Forum
Images
Collections

  • Année
  • 1979/1980
  • Catégorie
  • Amplificateur BF ou mélangeur BF
  • Radiomuseum.org ID
  • 310847

 Spécifications techniques

  • No. de transistors
  • Semi-conducteurs présents
  • Semi-conducteurs
  • Principe général
  • Amplification audio
  • Gammes d'ondes
  • - sans
  • Particularités
  • Equipement HIFI
  • Tension / type courant
  • Alimentation Courant Alternatif (CA) / 110; 120; 220; 240 Volt
  • Haut-parleur
  • - Ce modèle nécessite des HP externes
  • Puissance de sortie
  • 130 W (sans distorsion)
  • Matière
  • Boitier métallique
  • De Radiomuseum.org
  • Modèle: Stereo Amplifier SA-708 - Pioneer Corporation; Tokyo
  • Forme
  • Appareil d'étagère
  • Dimensions (LHP)
  • 420 x 150 x 337 mm / 16.5 x 5.9 x 13.3 inch
  • Remarques

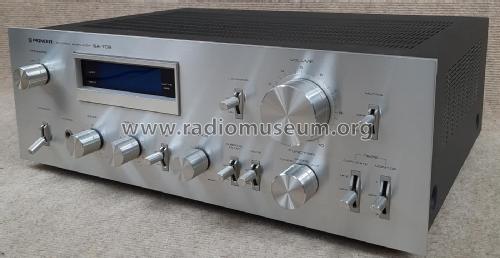

  • A hi-fi stereo integrated amplifier housed in a metal case with a silver front with continuous power output of 2 x 65 watts into 8 ohms. With a fluorescent power meter display, Function selector switch (Tuner, Phono, Aux), Loudspeaker selector (A, B, A+B), Loudness and Subsonic filter switches, rotary controls for Volume, Bass, Treble and Balance, Tone bypass switch, Muting switch, Mode selector switch (Stereo/Mono), Tape Monitor switches (1,2), Tape Duplicate switch and a jack for headphones. On the back, Interference Filter switch, RCA phono sockets for input Phono, Tuner and Aux and for input/output Tape1 and Tape2, DIN socket for Tape2 Rec/PB, terminals for two pair of loudspeakers and 3 AC outlets, 2 Switched 100 watts max., 1 Unswitched 200 watts max.

    Specification
    Amplifier Section
    Continuous Power output: 65 watts per channel into 8Ω
    from 20Hz to 20kHz
    with no more than 0.02% THD
    65 watts per channel into 4Ω
    from 20Hz to 20kHz
    with no more than 0.03% THD
    lntermodulation Distortion
     8Ω from AUX    		 No more than 0.02%
    Damping Factor (1kHz, 8Ω) 35
    Input (Sensitivity/Impedance)
     PHONO
     TUNER
     AUX
     TAPE PLAY 1
     TAPE PLAY 2    		 2.5mV/50kΩ
    150mV/50kΩ
    150mV/50kΩ
    150mV/50kΩ
    150mV/50kΩ
    Output
     TAPE REC 1
     TAPE REC 2    		 150mV/1kΩ
    150mV/1kΩ
     TAPE REC 2 (DIN) 30mV/80kΩ
     Speaker A, B, A+B, (4 - 16Ω)
    Frequency Response
     PHONO (RIAA Equalization)
     TUNER, AUX, TAPE PLAY    		 20Hz-20kHz ±0.2dB
    10Hz-50kHz ±1dB
    Hum and Noise
    (IHF, short-circuited, A network)
     PHONO
     TUNER, AUX, TAPE PLAY    		 86dB
    100dB

    Semiconductors: 3 ICs, 2 FETs, 41 Transistors, 31 Diodes

    Versions/Power requirements

    HR UK & Oceania 220V and 240V AC 50/60Hz (Selectable)
    HA Europe 220V and 240V AC 50/60Hz (Selectable)
    S/G US Military 110V, 120V, 220V, and 240V AC 50/60Hz (Switchable)
    S General export 110V, 120V, 220V, and 240V AC 50/60Hz (Switchable)

    Power consumption:  600 watts (HR & HA), 190 watts (S/G & S)

  • Poids net
  • 9.7 kg / 21 lb 5.9 oz (21.366 lb)
  • Littérature
  • - - Manufacturers Literature (1979/80 Pioneer Hi-Fi Stereo catalogue)
  • Schémathèque (1)
  • - - Manufacturers Literature (Service manual Pioneer SA-708)
  • Auteur
  • Modèle crée par Bruno De Marchi. Voir les propositions de modification pour les contributeurs supplémentaires.
