Stereo Cassette Tape Deck CT-540

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1983 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 276446

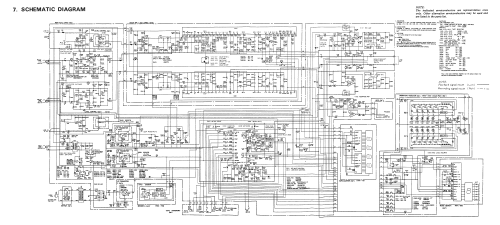

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Tape Deck CT-540 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 100.2 x 291 mm / 16.5 x 3.9 x 11.5 inch
  • Notes

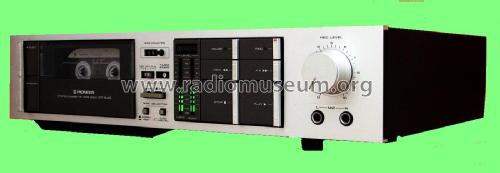

  • Pioneer Frontloading 2-Head Stereo Cassette Tape Deck Model CT-540.
    Track System: 4-track, 2-channel stereo
    Tape Speed: 4.76 cm/s
    Heads: 1 x record/playback, 1 x erase
    Motor: 1 x reel, 1 x capstan
    Tape Type: type I, Cr02, Metal
    Noise Reduction: Dolby B
    Frequency Response 25 - 17000Hz (Metal Tape)
    Input: 300mV (line), 0.5mV (mic)
    Output: 0.45V (line)
    Air dump eject function
    Full automatic stop
    LED Level Meter
    IC Full Logic Control
    One-Touch Recording

    Note:
    Model CT-540 comes in 5 Versions:
    KU - USA-Model - 120VAC only - 22 Watts
    HE - European Continent Model - 220VAC, 240VAC (Switchable) - 23 Watts
    HB - United Kingdom Model - 220, 240VAC (Switchable) - 23 Watts
    HP - Australia Model - 220, 240VAC (Switchable) - 23 Watts
    D - Genera Export Model - 120, 220, 240VC (Switchable) - 18 Watts


  • Net weight (2.2 lb = 1 kg)
  • 4.1 kg / 9 lb 0.5 oz (9.031 lb)
  • Mentioned in

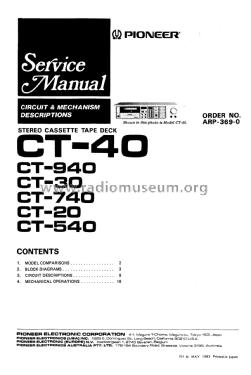

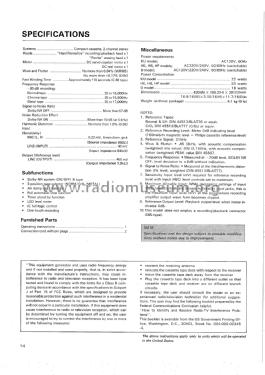

  • - - Manufacturers Literature (Service Manual)
