Stereo Receiver SX-450

Pioneer Corporation; Tokyo

Datos

Foro

Imágenes

Colecciones

País
Japon

Fabricante / Marca
Pioneer Corporation; Tokyo

Año
1976

Categoría
Radio - o Sintonizador pasado WW2

Radiomuseum.org ID
127101

Imágenes
Esquemas

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1646868) Radio — Pioneer Corporation; Stereo Receiver SX-450 (3)

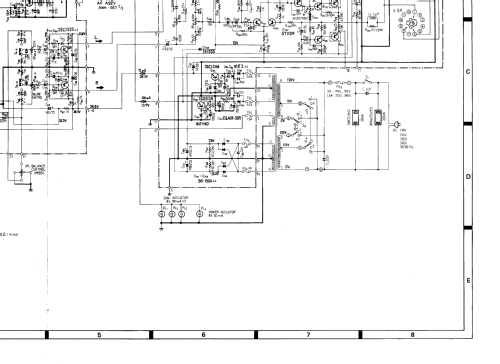

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1646869) Radio — Pioneer Corporation; Stereo Receiver SX-450 (3)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1646870) Radio — Pioneer Corporation; Stereo Receiver SX-450 (3)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1646871) Radio — Pioneer Corporation; Stereo Receiver SX-450 (3)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 2879411) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 426777) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1647810) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 426779) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 936974) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1024453) Radio — Pioneer Corporation; Stereo Receiver SX-450 (2)
Manual

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1218892) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)
Avec les haut parleurs.

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1647811) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1647812) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)
Totale Aufsicht innen

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1647813) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1647814) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1647815) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1647817) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1647819) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)
Totale Lötseite

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1647822) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)
Lötseite Tuner

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1647823) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)
Lötseite Netzteil / Verstärker

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1663970) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)
Bild vom Gerät aus Privatbesitz

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1663972) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)
Bild vom Gerät aus Privatbesitz

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1663973) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)
Bild vom Gerät aus Privatbesitz

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1663975) Radio — Pioneer Corporation; Stereo Receiver SX-450 (1)
Bild vom Gerät aus Privatbesitz

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1664086) Radio — Pioneer Corporation; Stereo Receiver SX-450 (2)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1664088) Radio — Pioneer Corporation; Stereo Receiver SX-450 (2)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1664090) Radio — Pioneer Corporation; Stereo Receiver SX-450 (2)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1664092) Radio — Pioneer Corporation; Stereo Receiver SX-450 (2)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1664093) Radio — Pioneer Corporation; Stereo Receiver SX-450 (2)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1664095) Radio — Pioneer Corporation; Stereo Receiver SX-450 (2)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1664096) Radio — Pioneer Corporation; Stereo Receiver SX-450 (2)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 1664098) Radio — Pioneer Corporation; Stereo Receiver SX-450 (2)

Stereo Receiver SX-450; Pioneer Corporation; (ID = 2075366) Radio — Pioneer Corporation; Stereo Receiver SX-450 (2)
Pioneer Print Ad

Stereo Receiver SX-450; Pioneer Corporation; (ID = 2099734) Radio — Pioneer Corporation; Stereo Receiver SX-450 (2)
Pioneer Print Ad 1976

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

Especificaciones técnicas

Numero de transistores
28

Semiconductores

Principio principal
Superheterodino en general

Gama de ondas
OM y FM

Tensión de funcionamiento
Red: Corriente alterna (CA, Inglés = AC) / 110; 120; 220; 240 Volt

Altavoz
- Este modelo usa altavoz exterior (1 o más).

Potencia de salida
30 W (undistorted)

Material
Materiales diversos

de Radiomuseum.org
Modelo: Stereo Receiver SX-450 - Pioneer Corporation; Tokyo

Forma
Unidad para estanteria.

Ancho, altura, profundidad
448 x 141 x 307 mm / 17.6 x 5.6 x 12.1 inch

Anotaciones
Stereo AM/FM receiver. 15 watts per channel RMS into 8 ohms. Front Sockets: Earphone, microphone. Rear Sockets: Aerials; FM 75 ohm unbalanced, FM 300 ohm balanced, ground, and AM. Input; phono and aux. Tape; rec, play and rec/play. Connections for 2 pairs of loudspeakers.

In dem Gerät sind neben den aufgeführten 28 Transistoren noch ein FET und 3 ICs (HA1137, HA1138, HA1156W-P) verbaut.

Peso neto
8.6 kg / 18 lb 15.1 oz (18.943 lb)

Precio durante el primer año
488.00 DM

Procedencia de los datos
- - Data from my own collection

Autor
Modelo creado por Howard Craven. Ver en "Modificar Ficha" los participantes posteriores.

Otros modelos
Donde encontrará 1151 modelos, 1135 con imágenes y 201 con esquemas.
Ir al listado general de Pioneer Corporation; Tokyo

Colecciones | Museos | Literatura

Colecciones

El modelo Stereo Receiver es parte de las colecciones de los siguientes miembros.

Forum
