586 DC Superdyne, General, Westminster
Pla-Pal Radio and Television Co.; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Pla-Pal Radio and Television Co.; Chicago, IL
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 220898
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / (Storage-) Battery 6 & 32 or AC/DC 110 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: 586 DC Superdyne, General, Westminster - Pla-Pal Radio and Television
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 10 x 7.5 x 5 inch / 254 x 191 x 127 mm
- Notes

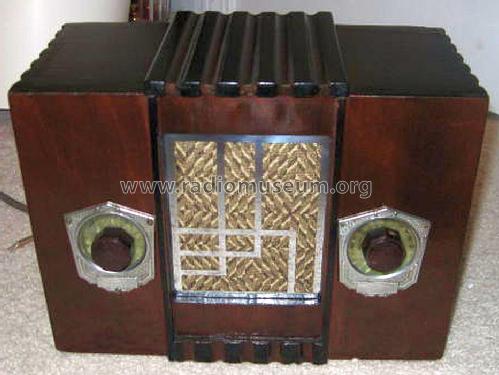

- The same cabinet can be found with the name Superdyne, General or Westminster. We do not know the technical difference yet and therefore keep the three models on this page - until we know more. They sport a chrome grill and art deco inspired escutcheons around the dials. They seem to have been made at "Plant A, Chicago", see orange tag on chassis. We think that the chassis is very similar or the same as 6524 Pokeradio. The tubes are the same. The Pla-Pal model 586DC has a resistance line cord for 110V. The tuning scale shows only numbers - from 0 to 100, not frequencies or meters. The socket on the chassis seems to be for lower voltage battery operation (we copied from the other model).
- External source of data
- Guest Claude Chafin, USA.
- Mentioned in
- Machine Age to Jet Age II (page 227.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
