- Country
- France
- Manufacturer / Brand
- Point Bleu; Paris - voir aussi Blaupunkt (D)
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 33892

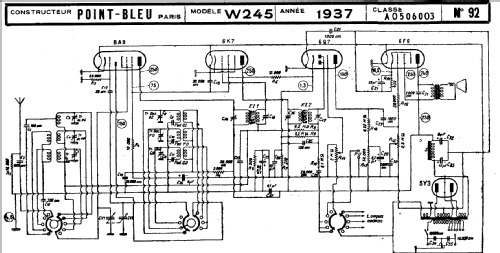

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 130; 150; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: W245 - Point Bleu; Paris - voir aussi
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 600 x 250 x 360 mm / 23.6 x 9.8 x 14.2 inch
- Notes
- Dial lamps: 6x 6,3V/0,3A
- Price in first year of sale
- 1,890.00 FFR
- External source of data
- Serge Laffont/Martin Renoth
