Idéal VII (7)
Point Bleu; Paris - voir aussi Blaupunkt (D)
- Country
- France
- Manufacturer / Brand
- Point Bleu; Paris - voir aussi Blaupunkt (D)
- Year
- 1928 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 331454
- Number of Tubes
- 3
- Valves / Tubes
- SuperdynIV HeliodynIV AmpladynIV
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Power type and voltage
- Storage and/or dry batteries / 4 & 90 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: Idéal VII - Point Bleu; Paris - voir aussi
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 180 x 60 x 190 mm / 7.1 x 2.4 x 7.5 inch
- Notes
-

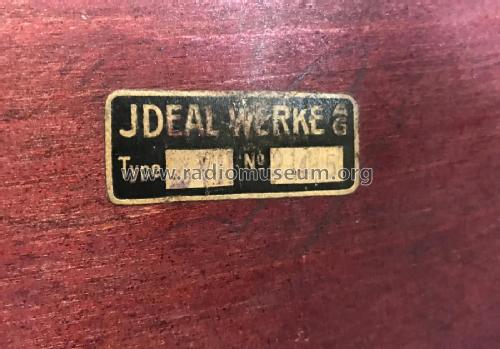

Modèle probablement importé d'Allemagne, avec le logo Point Bleu français.
Pour détails, voir Blaupunkt VII. Ce modèle était également vendu en tant que kit complet comprenant le récepteur, lampes Philips ou Telefunken, bobine Multidyne, haut-parleur 49Z, accu et pile.
- Mentioned in
- -- Original prospect or advert (La Radio per Tutti, Italy, dossier 11, 1928)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
