- Country
- France
- Manufacturer / Brand
- Point Bleu; Paris - voir aussi Blaupunkt (D)
- Year
- 1936 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 138579
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch
- Material
- Wooden case
- from Radiomuseum.org

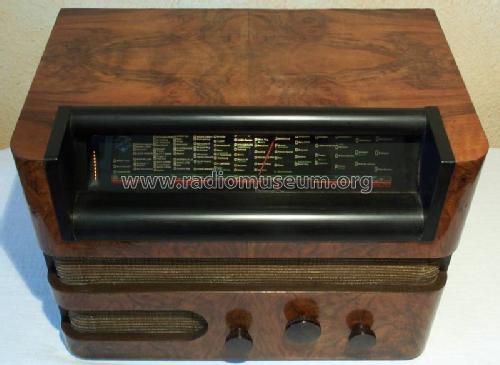

- Model: W206 - Point Bleu; Paris - voir aussi
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 520 x 365 x 334 mm / 20.5 x 14.4 x 13.1 inch
- Notes
- See also Point Bleu model W206K with different tube-lineup.
- Net weight (2.2 lb = 1 kg)
- 17.8 kg / 39 lb 3.3 oz (39.207 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
