- Country
- France
- Manufacturer / Brand
- Pygmy, Ciate-Pygmy (SCIP, CIATE); Paris, La Plaine St. Denis, La Courneuve
- Year
- 1965
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 244347
Dépliant Pygmy-Radio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / 2 x 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

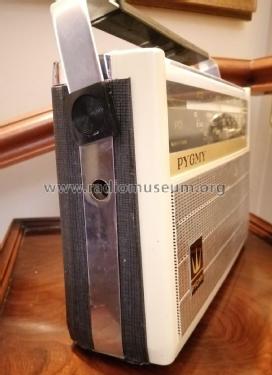

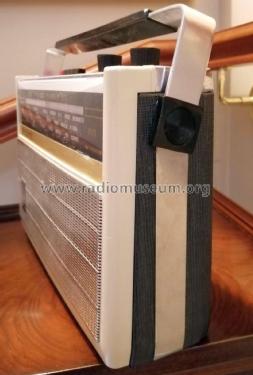

- Model: 705 - Pygmy, Ciate-Pygmy SCIP, CIATE
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 265 x 165 x 70 mm / 10.4 x 6.5 x 2.8 inch
- Notes
-
2 gammes d'ondes: PO 520 - 1620 kHz et GO 153 - 280 kHz. Clavier 5 touches. Double cadran éclairé. Fonctionnement en voiture avec bobinages spéciaux. Prises pour magnétophone et écouteur ou HP extérieur. 7 transistors et 2 diodes.
Poids avec piles.
- Net weight (2.2 lb = 1 kg)
- 1.760 kg / 3 lb 14 oz (3.877 lb)
- Mentioned in
- -- Schematic
- Literature/Schematics (1)
- -- Original prospect or advert
- Literature/Schematics (2)
- Le grand livre de la TSF (Doctsf Ref 13554)
