- Country
- France
- Manufacturer / Brand
- Pygmy, Ciate-Pygmy (SCIP, CIATE); Paris, La Plaine St. Denis, La Courneuve
- Year
- 1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 319704
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 480 kHz
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Dry Batteries / 6 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 850 AS - Pygmy, Ciate-Pygmy SCIP, CIATE
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 200 x 90 mm / 11.8 x 7.9 x 3.5 inch
- Notes
-
6 gammes d'ondes : PO, GO, OC1 de 13 à 31 m, OC2 de 41 à 75 m, et 2 bandes étalées (BE) sur 60 et sur 90 m.
Coffret matière plastique gainé.
- Net weight (2.2 lb = 1 kg)
- 2.1 kg / 4 lb 10 oz (4.626 lb)
- Mentioned in
- Pygmy, Une grande marque pour des petits postes. (Fiche No. 44, page 174)
- Literature/Schematics (1)

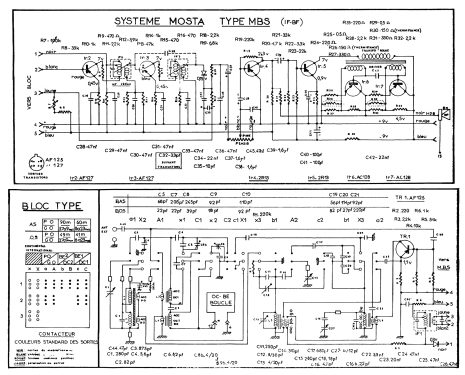

- -- Schematic
