- Country
- France
- Manufacturer / Brand
- Pygmy, Ciate-Pygmy (SCIP, CIATE); Paris, La Plaine St. Denis, La Courneuve
- Year
- 1962/1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 247940

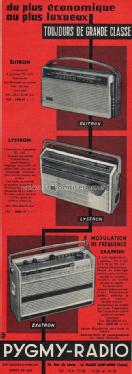

Original prospect
Original prospect
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 480 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 2 x 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

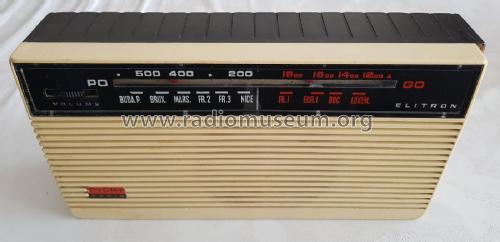

- Model: Élitron - Pygmy, Ciate-Pygmy SCIP, CIATE
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 260 x 135 x 60 mm / 10.2 x 5.3 x 2.4 inch
- Notes
-
2 gammes d'ondes PO et GO. Entée antenne voiture commutable. Haut-parleur impédance 20 ohms.
Coffret bois gainé, châssis et façade plastique. Poids avec piles.
Modèle aussi commercialisé comme Brandt 922P.
- Net weight (2.2 lb = 1 kg)
- 1.340 kg / 2 lb 15.2 oz (2.952 lb)
- Price in first year of sale
- 194.00 FRF
- Mentioned in
- Pygmy, Une grande marque pour des petits postes. (Fiche No. 19, p.164)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by a member from A. See "Data change" for further contributors.
