Varitron S-Matic

Pygmy, Ciate-Pygmy (SCIP, CIATE); Paris, La Plaine St. Denis, La Courneuve

Data
Forum
Pictures
Collections

  • Year
  • 1961
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 244092

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 14 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 6 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Varitron S-Matic - Pygmy, Ciate-Pygmy SCIP, CIATE
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 300 x 190 x 100 mm / 11.8 x 7.5 x 3.9 inch
  • Notes

  • 5 gammes d'ondes: PO 574 - 1400 kHz, GO 160 - 240 kHz, et trois OC de 10 à 167 m. Bande maritime.

    Antenne télescopique. Commutateur distance - local. Réglage antiparasite entre stations. Economiseur de piles. Cadran lumineux double lecture pour utilisation en auto. "Oeil magique" (S-Meter), possible de servir comme gionomètre. Prises écouteur / HP supplementaire, pick-up, antenne OC extérieure et antenne-auto. HP elliptique de 15 x 17 cm, z = 16 Ω.

    Coffret en bois gainé et matière plastique.

  • Net weight (2.2 lb = 1 kg)
  • 2.4 kg / 5 lb 4.6 oz (5.286 lb)
  • Price in first year of sale
  • 485.00 FRF
  • Mentioned in
  • -- Schematic
  • Literature/Schematics (2)

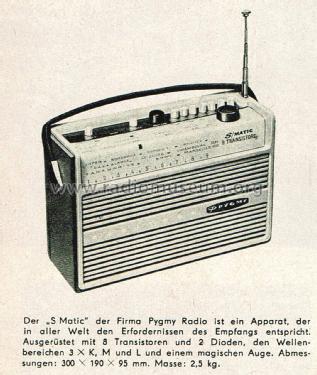

  • -- Original prospect or advert
