• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110552

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF89 EAF801 EM84 ECC83 EL84 EL84

• Main principle
• ZF/IF 460/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

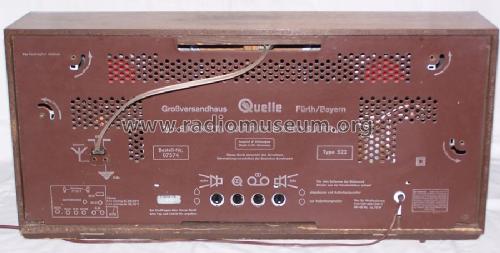

• Model: Simonetta Multiplex Stereo-Super "N" 522 Bestell Nr.: 07574 - QUELLE GmbH Universum; Fürth

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 720 x 280 x 190 mm / 28.3 x 11 x 7.5 inch

• Notes
• 2 Germanium-Dioden AA113 im Ratiodetektor.
  Vorbereitet für den Einbau eines Stereo-Decoders.
  Hergestellt durch Loewe Opta

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
