Universum Uhrenradio W 2821
QUELLE GmbH (Universum); Fürth und Nürnberg
- Country
- Germany
- Manufacturer / Brand
- QUELLE GmbH (Universum); Fürth und Nürnberg
- Year
- 1975 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 138459
by courtesy of Jessika Behnke
by courtesy of Jessika Behnke
by courtesy of Jessika Behnke

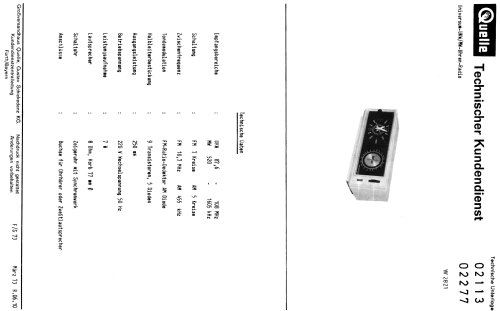

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Universum Uhrenradio W 2821 - QUELLE GmbH Universum; Fürth
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 222 x 95 x 105 mm / 8.7 x 3.7 x 4.1 inch
- Notes
- Universum Uhrenradio W 2821; Analog-Alarmuhr. Made in Taiwan.
- Net weight (2.2 lb = 1 kg)
- 0.9 kg / 1 lb 15.7 oz (1.982 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
- Other Models
-
Here you find 1085 models, 909 with images and 507 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from QUELLE GmbH (Universum); Fürth und Nürnberg
Collections
The model Universum Uhrenradio is part of the collections of the following members.
Forum contributions about this model: QUELLE GmbH: Universum Uhrenradio W 2821
Threads: 1 | Posts: 4
does anyone have pictures of the inside of the clock, I have one of this, but it is missing a piece and I do not know what she looked like?
Thank's
Cornel Olteanu, 21.Jun.14
