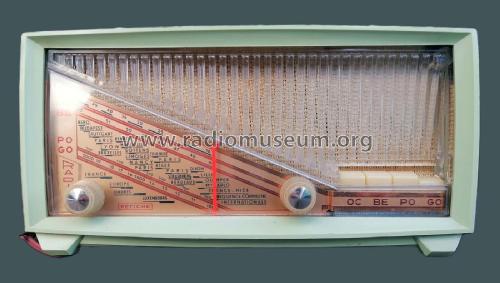

Fétiche sans oeil magique
Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis
- Country
- France
- Manufacturer / Brand
- Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis
- Year
- 1958–1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 137300
Brochure 1960
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- AC/DC-set / 110-130; 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Fétiche [sans oeil magique] - Radialva, Véchambre Frères;
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 275 x 145 x 95 mm / 10.8 x 5.7 x 3.7 inch
- Notes
-
Portable tous courants, 4 lampes + redresseur sélénium. GO, PO et OC (16 - 51 m) avec bande etalée (46 - 51 m). Haut parleur 10 x 14 cm. Cadre ferrite incorporé.
Coffret polystyrène vert, ivoire ou rouge.
Ce modèle existe aussi en variante avec oeil magique.
- Net weight (2.2 lb = 1 kg)
- 2.3 kg / 5 lb 1.1 oz (5.066 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Olivier Palix. See "Data change" for further contributors.
