- Country
- France
- Manufacturer / Brand
- Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62641

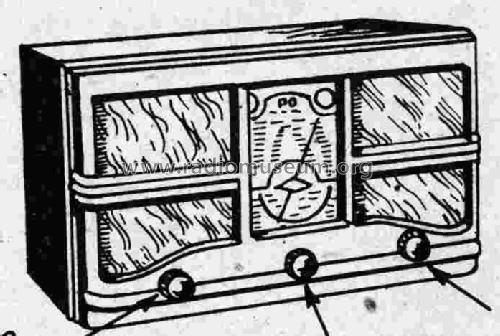

Depliant 1938
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
- Power out
- 3 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: M95 - Radialva, Véchambre Frères;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 460 x 280 x 260 mm / 18.1 x 11 x 10.2 inch
- Notes
-
Lampes échelles: 2x 6,5V/0,3A.
Voir aussi modèle Radio-Phono M95.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Price in first year of sale
- 1,195.00 FFR
- External source of data
- Serge Laffont/Martin Renoth
- Literature/Schematics (1)

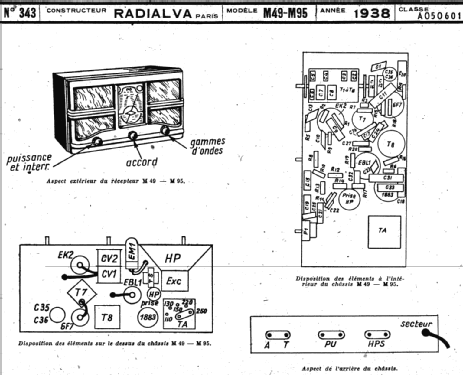

- -- Schematic
- Literature/Schematics (2)
- -- Original prospect or advert
