• Country
• France

• Manufacturer / Brand
• Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis

• Year
• 1937 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 280818

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 43 25Z5

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

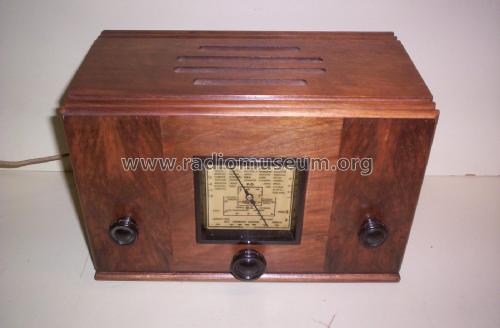

• Model: Radialvette [cadran carré] - Radialva, Véchambre Frères;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 320 x 200 x 190 mm / 12.6 x 7.9 x 7.5 inch

• Notes

• See also Radialvette C with round dial.

• Net weight (2.2 lb = 1 kg)
• 5.7 kg / 12 lb 8.9 oz (12.555 lb)

• Author
• Model page created by Jacques Denys. See "Data change" for further contributors.
