• Country
• France

• Manufacturer / Brand
• Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180248

• Number of Transistors
• 1

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

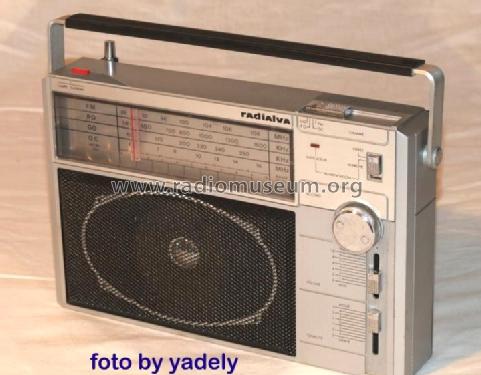

• Model: RR-444 - Radialva, Véchambre Frères;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 175 x 60 mm / 10.6 x 6.9 x 2.4 inch

• Notes
• GO / LW ca. 145 – 280 kHz,
  PO / MW ca. 540 – 1605 kHz,
  OC / KW ca. 5.900 – 16.500 kHz (19- bis 49-m-Band)
  FM / UKW ca. 87,5 - 108 MHz.

• Author
• Model page created by Philip Obetsanov. See "Data change" for further contributors.
