• Country
• France

• Manufacturer / Brand
• Radialva, Véchambre Frères; Asnières, Courbevoie, Saint-Denis

• Year
• 1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70998

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AJ8 12BA6 12AV6 50B5 35W4

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

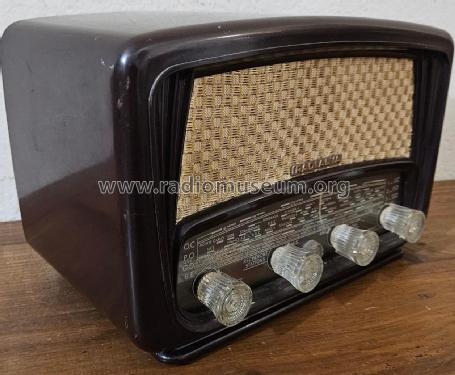

• Model: Super-As 55 - Radialva, Véchambre Frères;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 290 x 190 x 160 mm / 11.4 x 7.5 x 6.3 inch

• Notes
• Autotrafo for 110/220 V AC.

• External source of data
• Serge Laffont/Martin Renoth

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
